ATM Rating
750kg - 1400kg
Available Sizes
7x4, 7x5, 8x5
Warranty
Full Structural
Factory Direct Brisbane Build
Factory Direct • Request A Quote
Bike Trailers Overview
Engineered for secure motorbike and sports transport. Integrated wheel channels with front tyre stops, underbody slide-away ramp storage, multiple perimeter tie-down points, and seam-welded steel construction.
Standard Factory Inclusions:
- Integrated heavy-gauge bike channels with front wheel lock hoops
- Extended 100x50mm rectangular hollow section (RHS) drawbar
- Under-chassis slide-away loading ramp storage system
- ADR approved LED submersible lighting and safety chain system
- Reinforced tie-down loop rails and tie rings for ratchet straps
- Pre-drilled swing-away jockey wheel bracket
POPULAR MODELS & CONFIGURATIONS
Available Bike Trailer Models
Select any model below to view full specifications, Australian ADR compliance details, or request an itemised factory quotation.
FACTORY DIRECT
Bike Trailers
3-Bike Multi Carrier Trailer (750kg ATM)
Size: 2100mm x 1200mm (7ft x 4ft)
ATM: 750kg ATM
Factory Direct • Request Quote
FACTORY DIRECT
Bike Trailers

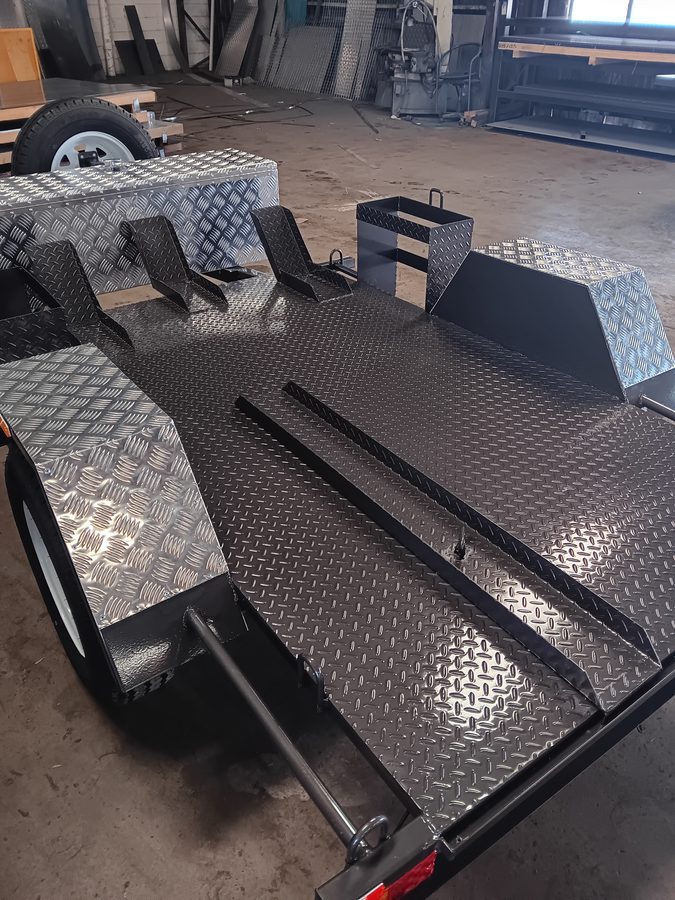

2-Bike Heavy Duty Motorbike Trailer (750kg ATM)
Size: 2100mm x 1200mm (7ft x 4ft)
ATM: 750kg ATM
Factory Direct • Request Quote
FACTORY DIRECT
Bike Trailers

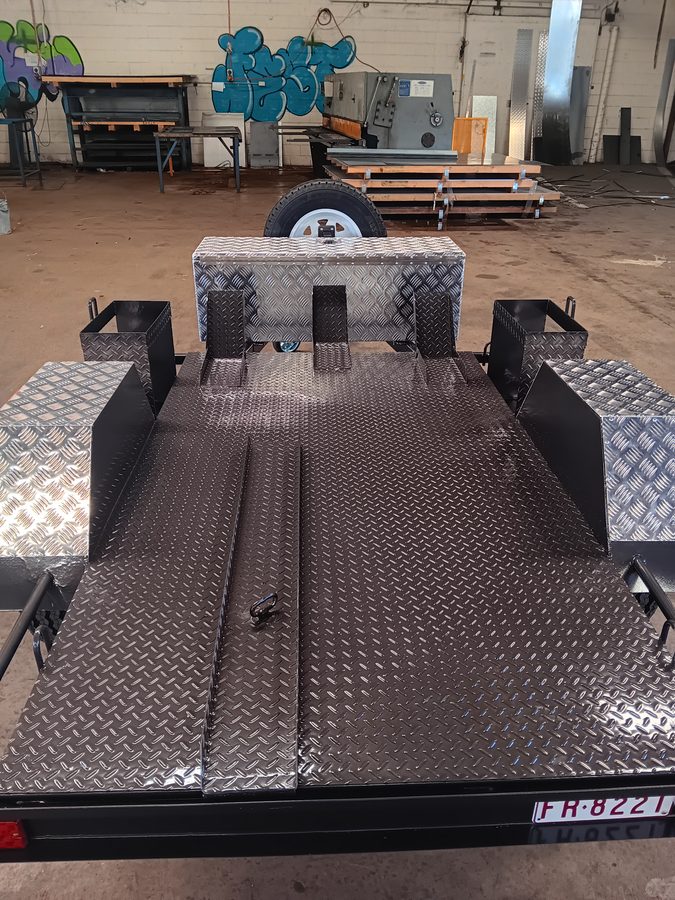

Heavy Duty Dirt Bike & Quad Carrier (1000kg ATM)
Size: 2400mm x 1500mm (8ft x 5ft)
ATM: 1000kg ATM
Factory Direct • Request Quote
FACTORY DIRECT
Bike Trailers

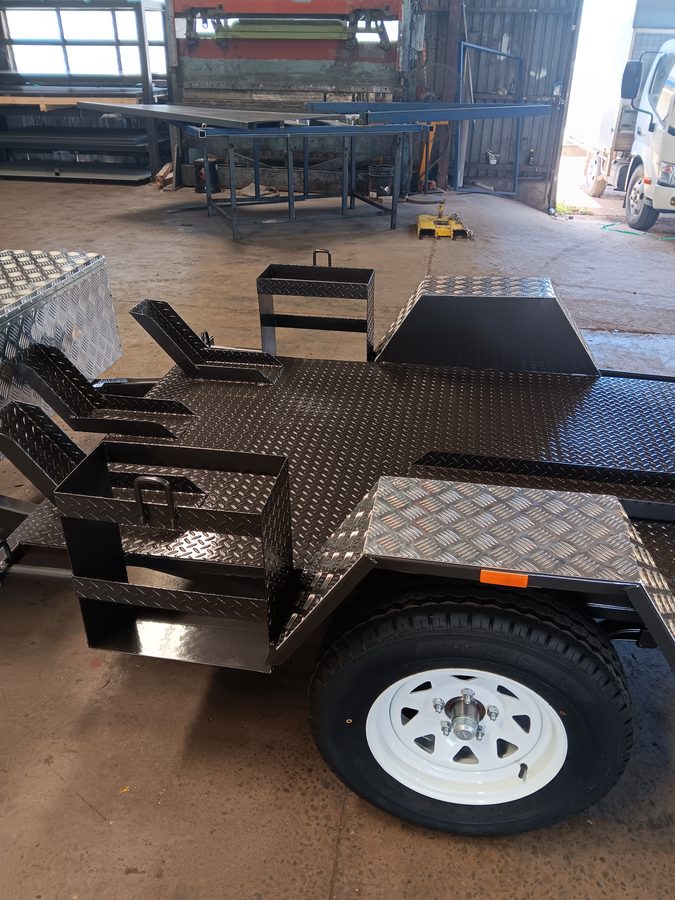

Commercial Motorbike Carrier with Underbody Ramp (1400kg ATM)
Size: 2400mm x 1500mm (8ft x 5ft)
ATM: 1400kg ATM
Factory Direct • Request Quote
Category Specifications & Engineering Standards
| Chassis Framework | Reinforced 50x50x2.5mm and 75x50x3.0mm RHS high-tensile Australian steel cross members. Fully jigged & welded. |
| Drawbar Specification | 100x50x3.0mm extended 1300mm - 1600mm drawbar for effortless towing stability, tighter turning circles, and front toolbox mounting. |
| Flooring & Sides | Full seam-welded 2.1mm - 3.0mm checkerplate steel floor with rigid ribbed sides for maximum structural integrity. |
| Axle & Suspension | Solid 45mm/50mm square axles with heavy-duty eye-to-eye slipper or 7-leaf commercial rocker roller suspension systems. |
| Surface Finish Options | Complete 100% hot-dip galvanised anti-rust bath inside and out, or industrial 2-pack heavy polyurethane enamel coating. |
| Wheels & Tyres | Brand new commercial light truck radial tyres mounted on heavy-duty steel white Sunraysia rims (Ford 5-stud or LandCruiser 6-stud pattern). |
| Braking System | Mechanical disc override brakes (up to 2000kg ATM) or 4-wheel electric drum brakes with emergency breakaway battery system (above 2000kg ATM). |
| Australian Compliance | Supplied with official VIN plate, Department of Transport & Main Roads (TMR QLD) Roadworthy / Safety Certificate ready for instant over-the-counter registration. |
DIRECT FACTORY INQUIRY
Request an Itemised Quote for Bike Trailers
Fill out your desired configuration below and our Brisbane workshop will return a formal wholesale quote within 2-4 business hours.
