ATM Rating
3000kg - 4500kg
Available Sizes
10x5, 12x5.5, 14x6
Warranty
Full Structural
Factory Direct Brisbane Build
Factory Direct • Request A Quote
Machinery Trailers Overview
Engineered for commercial contractors. Heavy-duty spring-assisted ramps, reinforced bucket rest tray, heavy channel crossmembers, and 70mm ball or pintle hook coupling options.
Standard Factory Inclusions:
- Heavy-duty 2.1mm - 2.5mm full checkerplate steel floor
- Extended 100x50mm rectangular hollow section (RHS) drawbar
- Solid steel axle with high-capacity Ford bearings
- ADR approved LED submersible lighting and safety chain system
- Tie down rails on all 4 sides for secure load anchoring
- Pre-drilled swing-away jockey wheel bracket
POPULAR MODELS & CONFIGURATIONS
Available Machinery Trailer Models
Select any model below to view full specifications, Australian ADR compliance details, or request an itemised factory quotation.
FACTORY DIRECT
Machinery Trailers

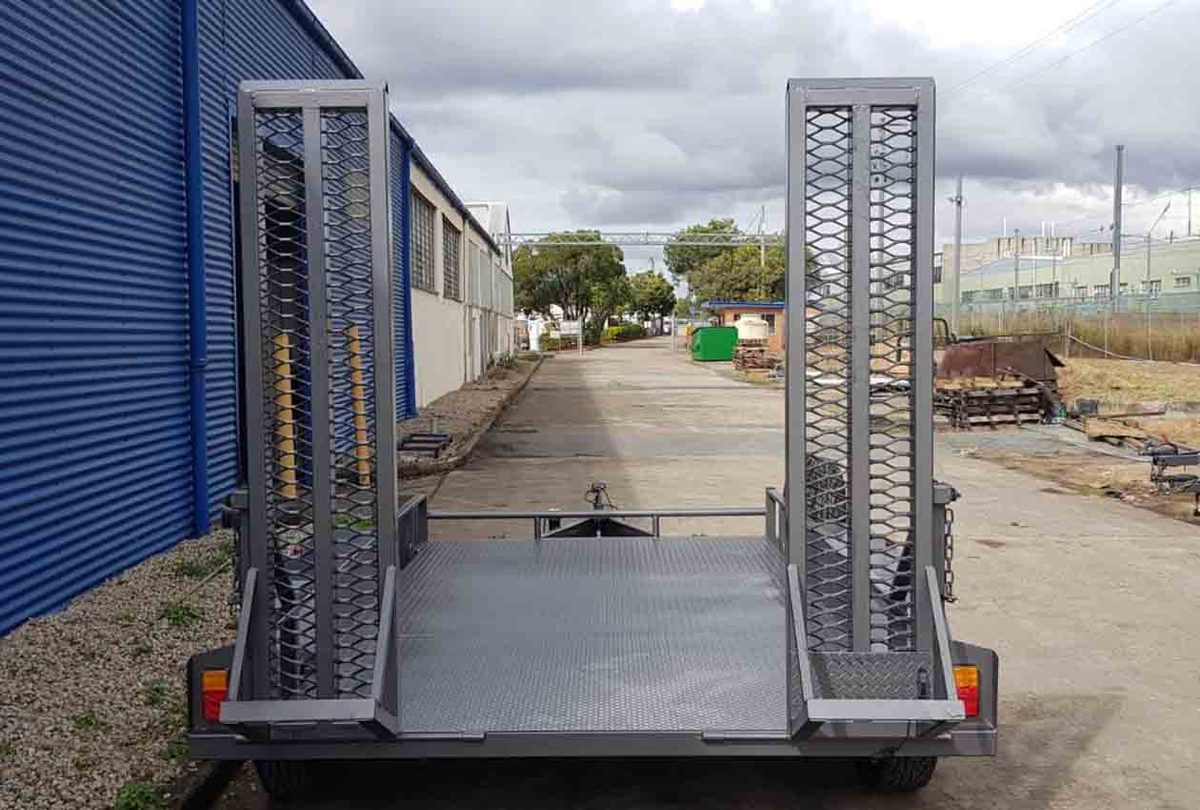

10×5 Heavy Duty Mini Excavator Plant Trailer (3500kg ATM)
Size: 3000mm x 1500mm (10ft x 5ft)
ATM: 3500kg ATM
Factory Direct • Request Quote
FACTORY DIRECT
Machinery Trailers

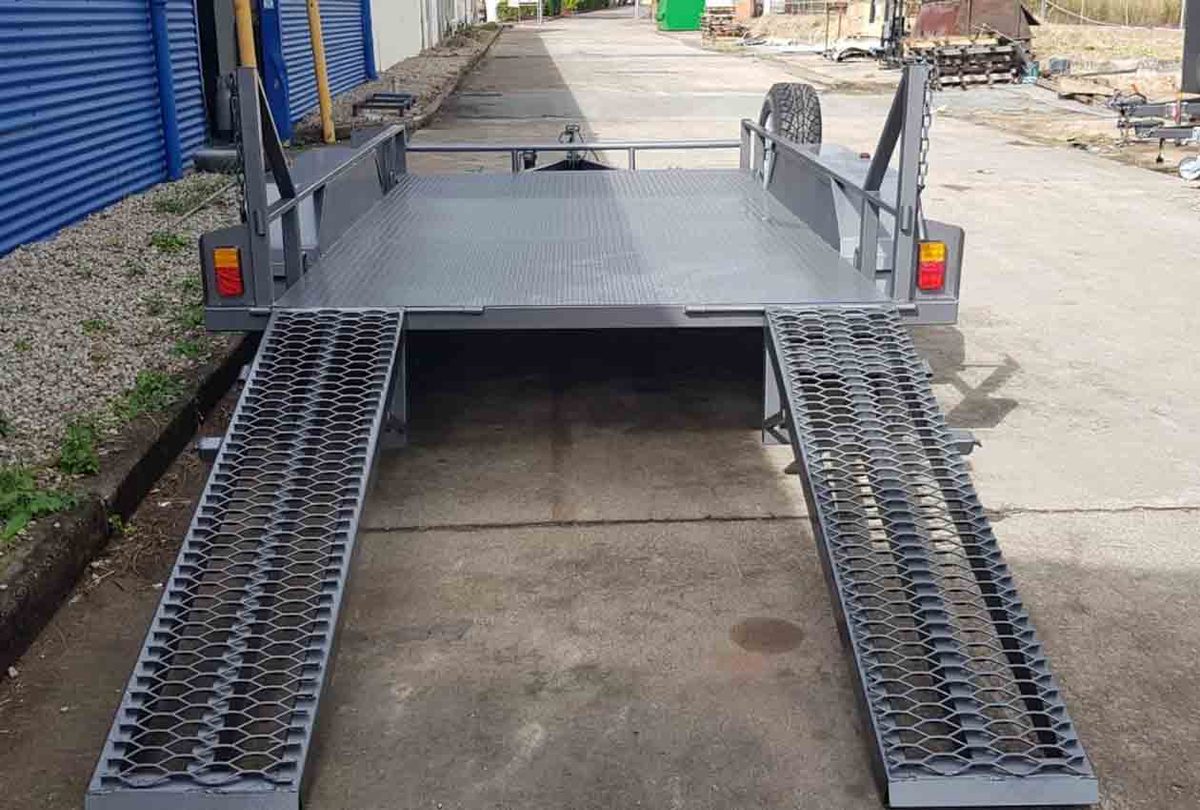

12×5.5 Commercial Plant & Bobcat Trailer (3500kg ATM)
Size: 3600mm x 1650mm (12ft x 5ft 6in)
ATM: 3500kg ATM
Factory Direct • Request Quote
FACTORY DIRECT
Machinery Trailers
Heavy Duty Cable Drum Carrier Trailer (3000kg ATM)
Size: Custom Drum Diameter (Accommodates Up to 2.4m Spools)
ATM: 3000kg ATM
Factory Direct • Request Quote
Category Specifications & Engineering Standards
| Chassis Framework | Reinforced 50x50x2.5mm and 75x50x3.0mm RHS high-tensile Australian steel cross members. Fully jigged & welded. |
| Drawbar Specification | 100x50x3.0mm extended 1300mm - 1600mm drawbar for effortless towing stability, tighter turning circles, and front toolbox mounting. |
| Flooring & Sides | Full seam-welded 2.1mm - 3.0mm checkerplate steel floor with rigid ribbed sides for maximum structural integrity. |
| Axle & Suspension | Solid 45mm/50mm square axles with heavy-duty eye-to-eye slipper or 7-leaf commercial rocker roller suspension systems. |
| Surface Finish Options | Complete 100% hot-dip galvanised anti-rust bath inside and out, or industrial 2-pack heavy polyurethane enamel coating. |
| Wheels & Tyres | Brand new commercial light truck radial tyres mounted on heavy-duty steel white Sunraysia rims (Ford 5-stud or LandCruiser 6-stud pattern). |
| Braking System | Mechanical disc override brakes (up to 2000kg ATM) or 4-wheel electric drum brakes with emergency breakaway battery system (above 2000kg ATM). |
| Australian Compliance | Supplied with official VIN plate, Department of Transport & Main Roads (TMR QLD) Roadworthy / Safety Certificate ready for instant over-the-counter registration. |
